1. GWATCH DEVICE

a. Accessories

b. Device Features

I. Full Screen Touch Display

II. SOS/Answer Call Key

III. Power Key

IV. Flash Light

V. Camera

VI. Home Button

VII. USB Interface

VIII. SIM Card Slot

c. Warning

d. Caller Security Feature


2. GWATCH APP

a. For Android

I. Download GWATCH APP from the Google Play Store, Install and Launch the App

II. Adding a device to GWATCH App for tracking in Android

III. Device activation procedure in Android

IV. Deleting a device from GWATCH App in Android

b. For IOS

I. Download GWATCH APP from the App Store, Install and Launch the App

II. Adding a device to GWATCH App for tracking in IOS

III. Device activation procedure in IOS

IV. Deleting a device from GWATCH App in IOS

c. The App

I. GWATCH Tracking Center

II. Basic Services:

A. Device Management (Adding, Deleting, Changing Settings,Phonebook)

B. Locating Devices (Real time Location, App to Device two-way voice calling)

III. Advanced Services:

A. Geofencing (Setting Authorized and Restricted Areas)

B. Geomarking (Setting Geodmarks like Home, School, Mall etc)

C. Remote Cam (View, Remote Capture - Photos)

D. Voice Chat (Send, Listen - Voice Messages, Send- Text Message)

E. Alerts (Settings, Messages - SOS, Battery, Geofence, Geomark, SMS)

F. Tracking Logs (Device Route History Data)

G. Utilities (Love Meter, Pedometer, Auto Call, Power Off, Find Me)

IV. User Settings


1. GWATCH DEVICE

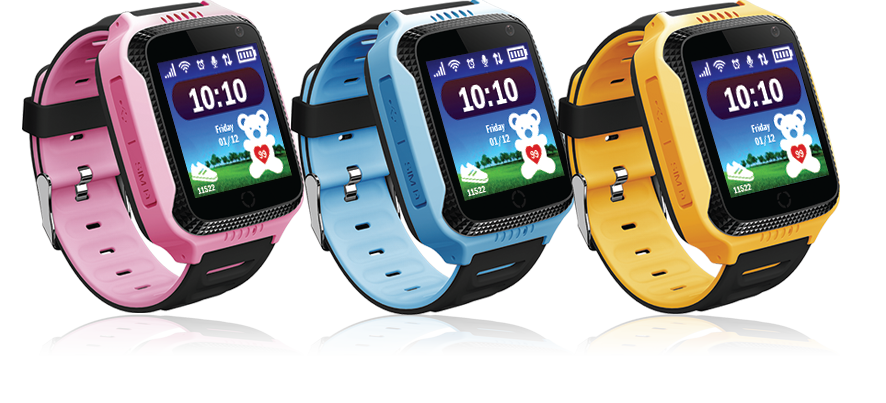

Model Number: gwatch-mkg001

gwatch mkg001

a. Accessories :

    1. USB cable


b. Device Features :

gwatch mkg001



  1. Full Screen Touch Display :

- Displays time, date, battery level, and GSM signal strength.

- Scroll Left or Right to access other function.


  1. SOS/Answer Call Key :

- Quick press to receive an incoming call.

- Long press for 10 seconds during standby mode to dial the guardian numbers or register mobile number set by GWATCH mobile app.



  1. Power Key :

- Power ON : Long press for 3 seconds while the device is OFF.

- Power OFF : Long press for 3 seconds while the device is ON.

- End call : Quick press during a call.

- Reject call : Quick press while receiving a call.

- Display time : Quick Press once during standby mode.



  1. Flash Light :

- Scroll the watch display left or right to go to flash light option.

- On/Off flash light by scrooling the screen uo or down.



  1. Camera :

- Scroll the watch display left or right to go to camera option.



  1. Home Button:

- Touch the home button to return to home screen.

- Touch to answer an incoming call.



  1. USB Interface:

- Use the provided USB cable with the device for charging purposes only.



  1. SIM Card Slot:

- Insert SIM card: Push the SIM card directly into the slot until locked.

- Remove SIM card: Push the SIM card directly, the SIM card will eject.



c. Warning :

- Avoid contact with water.

- Keep away from fire and high temperature.

- Do not allow children to put device in their mouth by mistake.

- Do not use unauthorized USB cables to charge the device.

- The device will not work if battery is discharged, power state is OFF, or out of service.



d. Caller Security Feature :

- Device can receive calls only from the two Family Preset Numbers set on the device, the registered mobile number for the GWATCH user account that is monitoring the device and ten phonebook numbers set by the mobile app.

  1. Getting started:

STEP 1: Insert a 2G (GPRS) data-enabled micro-SIM card into device SIM card slot.

STEP 2: Use smart phone to download the GWATCH application and then install it. You can use the QR code provided below to download the Android GWATCH App from the Google Playstore and IOS GWATCH App from the App Store:


qrcode gwatch


STEP 3: Follow GWATCH APP instructions to pair and monitor the GWATCH device with a smart phone.



2. GWATCH APP



a. For Android

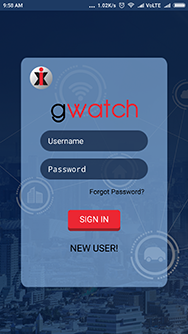

  1. Download GWATCH APP from the Google Play Store, Install and Launch the App:

- If you are a NEW USER, provide your name and Register with a valid email ID.

- Provide mobile number of the smart phone that will be used for monitoring the device.

- Provide Device Id number (Please check packaging box labels for device id number).

- Provide a USER ID that will be used to login to the account.

- Set your account PASSWORD.

- Select your country TIME-ZONE.

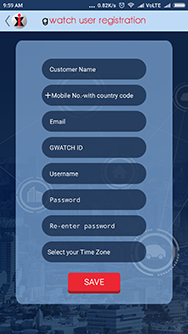

login android android user resgistration

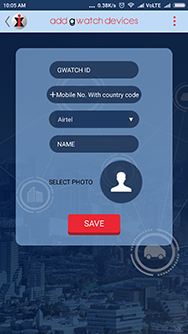

II. Adding a device to GWATCH App for tracking in Android

- Click on DEVICES at the GWATCH tracking center and click on "+" at GWATCH devices

- Enter Device ID number of the device to be tracked if already not set

- Provide SIM No. and select network provider of the SIM card to be used

- Provide child name and photo that will be using this device



add gwatch devices


III. Device Activation Procedure in Android

- Once the device is added, device activation can take up to three minutes. If device fails activation, retry activation by clicking on the cartwheel and going to the device settings.





IV. Deleting a device from GWATCH App in Android

- Press the trash icon for the device to be deleted from App.





b. For IOS

  1. Download GWATCH APP from the App Store, Install and Launch the App:

- Allow GWATCH to access your GPS location

- If you are a NEW USER, provide your name and Register with a valid email ID.

- Provide mobile number of the smart phone that will be used for monitoring the device.

- Provide Device Id number (Please check packaging box labels for device id number).

- Provide a USER ID that will be used to login to the account.

- Set your account PASSWORD.

- Select your country TIME-ZONE.





II. Adding a device to GWATCH App for tracking in IOS

- Click on DEVICES at the GWATCH tracking center and click on "+" at GWATCH devices

- Enter Device ID number of the device to be tracked if already not set

- Provide SIM No. and select network provider of the SIM card to be used

- Provide child name and photo that will be using this device



add gwatch devices



III. Device Activation Procedure in IOS

- Once the device is added, device activation can take up to three minutes. If device fails activation, retry activation by clicking on the cartwheel and going to the device settings.






IV. Deleting a device from GWATCH App in IOS

- Press the trash icon for the device to be deleted from App.





c. The App

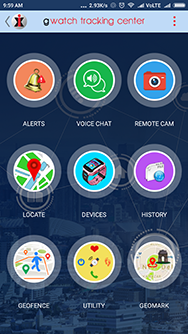

I. GWATCH Tracking Center

- All GWATCH devices can be managed by clicking the DEVICES icon

- All GWATCH devices can be located instantly by clicking the LOCATE icon

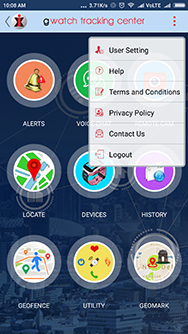

- GWATCH User menu can be accessed by clicking the three vertical dots to:

- By clicking the back button "<", user will be prompted to logout of App.





II. Basic Services:

A. Device Management (Adding, Deleting, Changing Settings,Phonebook)

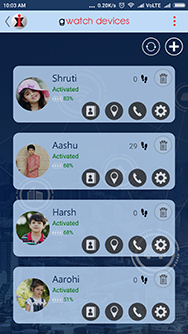

- By clicking on the DEVICES icon, enter into the Device Management area

- By clicking on the "+" sign, new devices can be added as described earlier

- By clicking on the refresh sign adjacent to "+", current status of the devices will be refreshed.

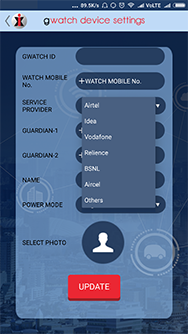

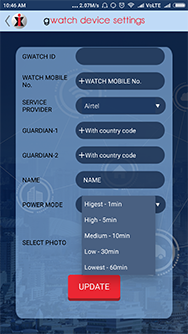

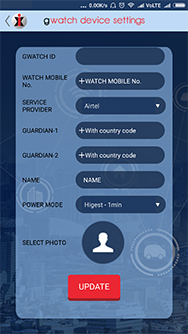

- By clicking on the cartwheel icon, device settings can be changed.

- Telecom operator has to be selected for the respective SIM

- Select the power modes (Highest -Most Accurate /High/ Medium / Low/Lowest)

- Click on "UPDATE" button to save all the changes.

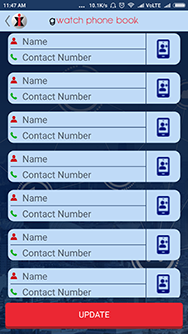

- By clicking on the phonebook icon, 10 numbers can be stored in watch

- By clicking on the tracking icon, device can be located on a map

- By clicking on the calling icon, two way calls can be made to the device

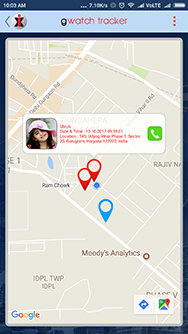

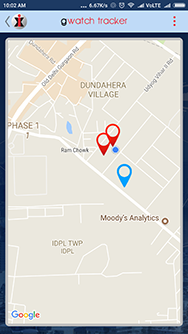

B. Locating Devices (Real time Location, App to Device two-way voice calling)

- By clicking on the LOCATE icon in the tracking center, start locating devices

- All devices that are tracked by the application will be displayed on the tracker

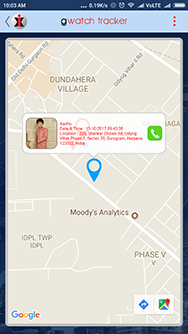

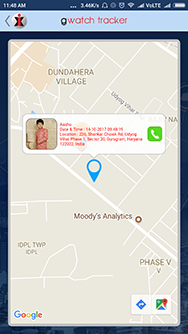

- By clicking the tracking icon, the current address of the devices are displayed

- A red color icon indicates a GPS (Satellite-based) location and a blue color icon indicates LBS (Cell tower-based) location




III. Advanced Features:

- Click on GEOFENCE icon to access Geo Fencing feature

- Click on GEOMARK icon to access Geo Marking feature

- Click on REMOTE CAM icon to access Image Capture feature

- Click on VOICE CHAT icon to access Voice Chat feature

- Click on ALERTS icon to access alerts and its settings

- Click on HISTORY icon to access stored tracking history of devices

- Click on UTILITIES icon to access Love Meter,Pedometer,Auto Call,Remote Shut Down and Watch Finder features of the device

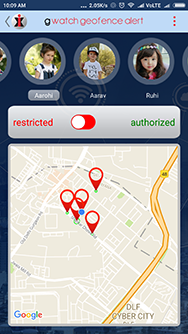

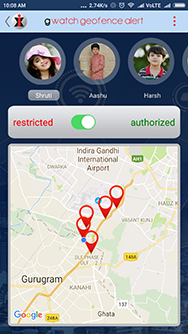

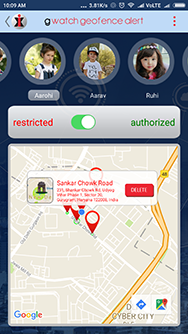

A. Geofencing (Setting Authorized and Restricted Areas)

- Click on GEOFENCE icon to access Geo Fencing features

- Access geo fences of each device by clicking on the Kid Icons on the top

- Scroll through the devices list by sliding icons left and right

- Use the provided sliding button to create authorized and restricted areas

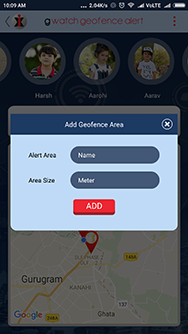

- Long touch any area of the map to add a new alert geofence area and set its name and size in Meters

- Authorized areas are indicated by green circles

- Restricted areas are indicated by red circles

- A single click on the icon over an area indicates the geo fenced area details. Geofence can also be deleted from here.

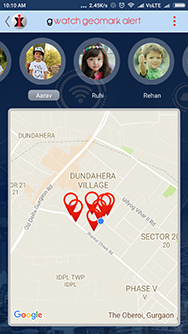

B. Geomarking (Setting Geodmarks like Home, School, Mall etc)

- Click on GEOMARK icon to access geo-marking

- Access geomarks of each device by clicking on the Kid Icons on the top

- Scroll through the devices list by sliding icons left and right

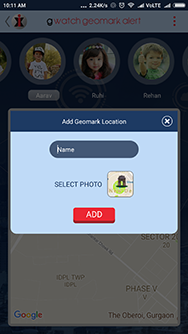

- Long touch any area of the map to add a new geomark and set its name and add a photograph

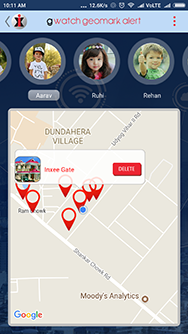

- A single click on the icon over an area indicates the geomark details. Geomarks can also be deleted from here.

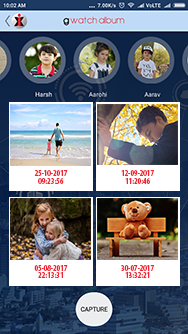

C. Remote Cam (View, Remote Capture - Photos)

- Click on REMOTE CAM icon under to access album and remote cam feature

- Access album of each device by clicking on the Kid Icons on the top

- Scroll through the devices list by sliding icons left and right

- Click "Capture" button to capture photo through watch camera.

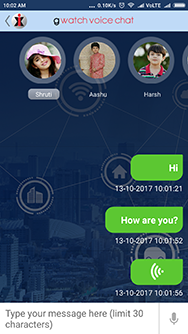

D. Voice Chat (Send, Listen - Voice Messages, Send- Text Message)

- Click on VOICE CHAT icon to access voice messages

- Access voice messages of each device by clicking on the Kid Icons on the top

- Scroll through the devices list by sliding icons left and right

- Hold on mic icon to record voice mesaages

- Click on audio icon in chat box to listen the sent/received voice messages

- Type in text box to send text messages to watch(Max. 30 characters)

- All the messages are saved in phone memory and can not be retrive again if deleted

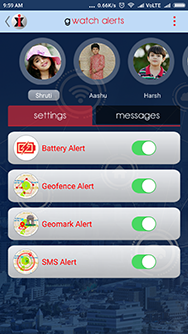

E. Alerts (Settings, Messages - SOS, Battery, Geofence, Geomark, SMS)

- Click on ALERTS icon to access alerts

- Access alerts of each device by clicking on the Kid Icons on the top

- Scroll through the devices list by sliding icons left and right

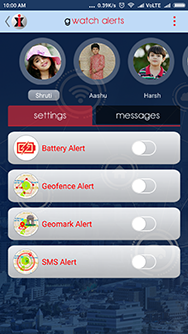

- Change alert settings of the devices by clicking on settings

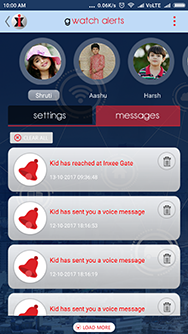

- Read all alerts of the devices and delete/clear alerts by clicking on messages

- Newest alerts are displayed on the top and access older alerts by clicking Load More button.

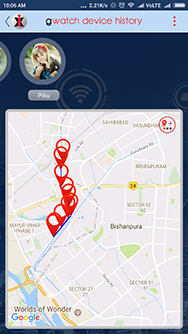

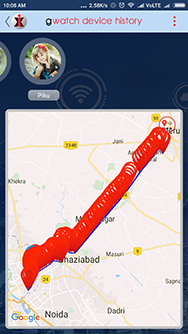

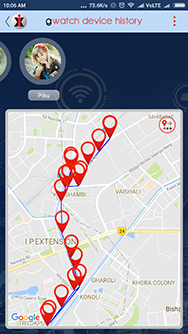

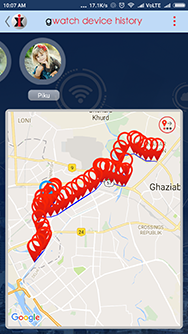

F. Tracking Logs (Device Route History Data)

- Click on HISTORY icon to access stored logs of devices.

- Access logs of each device by clicking on the Kid Icons on the top

- Scroll through the devices list by sliding icons left and right

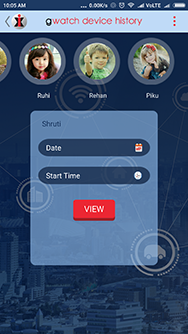

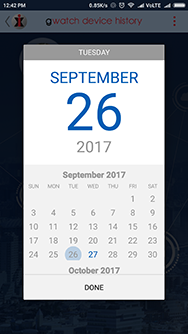

- Set the starting date and time of logs to be retrieved and displayed.

- Use the logs fetch icon at the top right corner of the logs map window to fetch and display more data from the logs database

- The routes of the devices are drawn for GPS based data only.





G. Utilities (Love Meter, Pedometer, Auto Call, Power Off, Find Me)

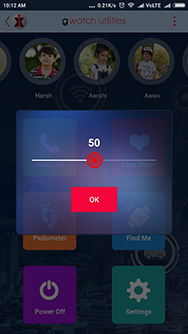

- Click on LOVE METER icon to send reward points to child.

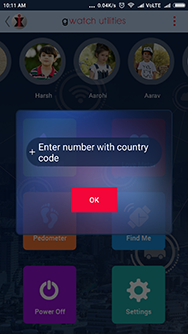

- Click on AUTO CALL iocn to make a call through watch on a number

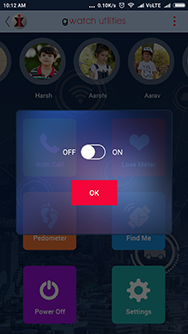

- Click on PEDOMETER icon to on/off pedometer

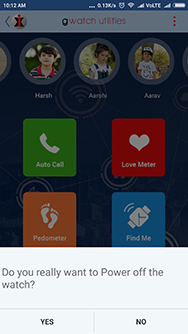

- Click on POWER OFF icon to shutdown the watch

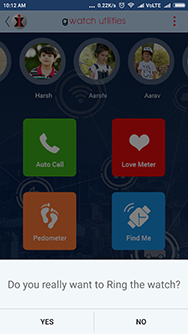

- Click on FIND ME icon to ring the watch

- Click on SETTINGS icon to access the settings of the watch

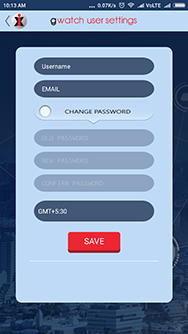

IV. User Settings

- Click on the three vertical dots at My Tracking Center to access the User Menu

- From the User Menu access User settings

- Modify settings as per requirement and save.
